- KARV Price: $26,850
-
Sleeps 4
-
BunkhouseRear Kitchen
-
20ft Long
-
4,422 lbs

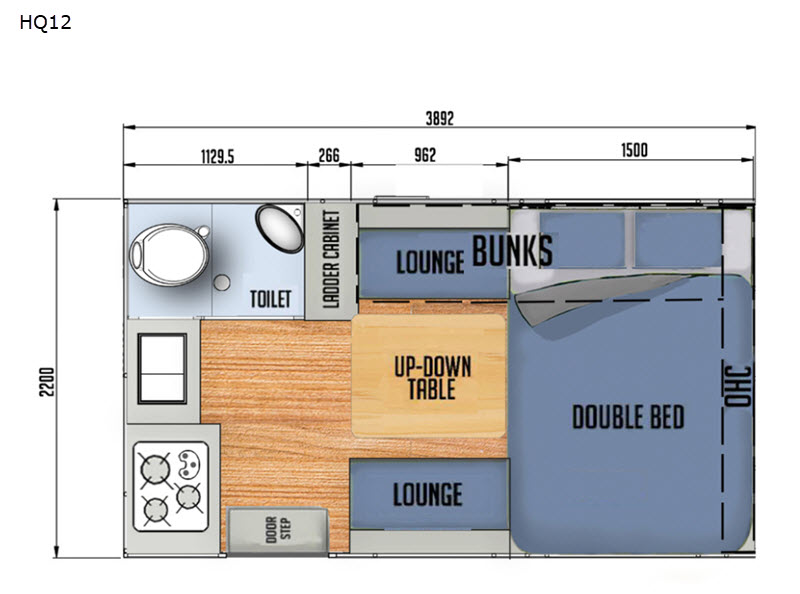

HQ12 Floorplan
Specifications
Sleeps | 4 | Length | 19 ft 6 in |
Ext Width | 7 ft 8 in | Ext Height | 8 ft 2 in |
GVWR | 6750 lbs | Dry Weight | 4422 lbs |
Fresh Water Capacity | 50 gals | Grey Water Capacity | 66 gals |
Tire Size | 16" | Number Of Bunks | 1 |
Available Beds | Double | Refrigerator Type | Dometic |
Cooktop Burners | 3 | Number of Awnings | 1 |
LP Tank Capacity | 20 lbs | Water Heater Capacity | 6 gal |
Water Heater Type | Atwood Gas | TV Info | LR 24" TV with DVD |
Awning Info | Wind-Out Dometic | Axle Count | 1 |
Number of LP Tanks | 2 | Shower Type | Wet/Bath Shower |
VIN | 4B9B1AB10LA165746 |
Description
Black Series Camper HQ12 travel trailer highlights:
- Bunk Beds
- Wet Bath
- Three-Burner Range
- Adjustable Table
If you are a serious outdoorsman that wants to explore uncharted trails, this Black Series travel trailer is your perfect accomplice! Not only will you have all of the necessary tools to meet your every need, but you will also have a beautiful and relaxing space to return back to each night. The modern wooden vinyl flooring, genuine leather seating, and Malaysian honeycomb timber cabinetry create a decorative space to call home while on the road. You will also thoroughly appreciate having a fiberglass wet bath to call your own, and with enough space to sleep four people, you can invite your friends to partake in the fun.
If you push the boundaries and search for adventure along rugged terrain, you will find all Black Series travel trailers have been especially designed with you in mind! These trailers make weekend warriors and off-road pioneers crave for their next big expedition. The solar panels, 12V/120V electrical system, and AGM 100Ah gel batteries ensure that all of your modern conveniences will be accessible throughout the entire trip, and the full roof and wall insulation will protect you from harsh climates and unwanted noises. You will even be able to conveniently wash dishes and take a shower because of the 6 gallon Atwood gas hot water heater.
Features
Standard Features (2020)
***PLEASE NOTE: Features and Options separated by type and model below:
--------------------------------------------------
TRAVEL TRAILERS
MODEL HQ12
Interior
- Full fiberglass shower enclosed with ventilation, Thetford/Dometic toilet and hand basin
- Dinette style leather seats
- Adjustable table / lounge bed
- 1x Double Bed innerspring bed + 1x Lounge bed + additional removable bunk bed. (suitable for a child)
- Modern Wooden vinyl throughout
- Modern 5-star timber finish veneer with Malaysian honeycomb timber for ultra-light weight finished off with a durable gloss timber veneer
- Soft close drawers
- Slim twin fan and twin light range hood
- Quality black leather hide with a modern 5-star finish diamond stitching throughout the sofa, storage pockets and bed rest areas
- Tri Lock Security Door with a separate fly screen door inbuilt
Appliances
- Dometic fridge/freezer
- Stainless Steel Large bowl sink
- Dometic brand, light weight, slim, efficient, multi cycle and economic
- Domestic 3 burner stove
- Kenwood CD/FM/iPod/Bluetooth/USB
- Two Pioneer internal mounted speakers
- 24’’ TV with DVD function
- Smoke Alarm & Gas Detector
- Jack Digital HDTV over the Air Antenna with Built-in SureLock
- Fire extinguisher
Plumbing
- Full fiberglass enclosed bathroom with ventilation
- Hot/cool water shower
- Thetford/Dometic Toilet
- Pump to 3 stage filter tap
- Water Tanks
- General Water: 1x 50 gal polyurethane water tank with 0.12” bash cover for ultimate protection
- Drinking Water: 1x 16 gal lightweight, durable, polyurethane water tank with alloy bash cover
- Greywater: 66 gal polyurethane water tank with aluminium 0.12” bash cover
- 2x 20 lbs Gas cylinder Holders
- 2x 5 gal Jerry-can holders
- 6 gal Atwood Gas Hot Water system
- Wash Tap on drawbar
Chassis
- Hot dipped galvanized drawbar and chassis made from RHS 4" x 2" x 0.15", with supporting 0.24" plates for extra strength and durability
- Aluminium RHS frame, aluminium composite material/panel
- Engineered and load tested at 20 ton per suspension arm with dual shock absorbers per control arm and coil springs
- 2x 16” Steel Sunraysia wheels with a satin black powder coated finish, rated at 3,417 lbs each
- 2x 265 x 75 x R16 Goodride Mud Terrain tires
- 2x 12” electric with mechanical handbrake
- Hitchmaster DO35 V2-1 with car attachment included
- ARK XO Swing Away 10” Jockey Wheel Included
- Two rear rated recovery shackles – rated to 4.75T
Electrical
- 12V/ 120V electrical system with 2000 watt Black Series pure sine wave
- Inverter with a peak of 4000 watt and Charger with a custom Black Series control panel
- 2x AGM 100Ah Gel batteries
- 2x Roof mounted 150w Solar panels
- LED down lights
- Reading lights in bedroom and lounge room
- Wide-angle Side & Rear mounted LED lights with additional front and rear bar lights
- Anderson plug
- ALKO breakaway system car attachment provided
- Internal/External 12V/USB plugs
- Internal double pole and external weatherproof power points
Exterior
- Easy 2 stage pop-up with canvas enclosure.
- x4 Eurovision windows with fly screens and privacy shades
- Custom aerodynamic modern front end of caravan, with Jerry and Gas compartments ventilated and stored separately with additional storage area / stone deflector
- Full roof and walls insulation
- Wind out compact Dometic awning
- Drop down Thule Sweden
- 4x Stabilizer legs
------------------------------------------
MODEL HQ15
Interior
- A separate private toilet and shower with glass vanity with additional storage shelves.
- Grey acrylic full height splashback
- Dinette style leather seats
- Adjustable table / lounge bed
- 1x Queen size innerspring mattress + 1x Lounge bed. (suitable for a child)
- Modern Wooden vinyl throughout
- Modern 5-star timber finish veneer with ample storage space
- Malaysian honeycomb timber for ultra-light weight finished off with a durable gloss timber veneer
- Sliding door in ensuite area
- Large slimline slide out pantry
- Stainless finish towel racks
- Soft close drawers
- Gas strut assist cupboards
- Slim twin fan and twin light range hood
- Quality black leather hide with a modern 5-star finish diamond stitching throughout the sofa, storage pockets and bed rest areas
- Tri Lock Security Door with a separate fly screen door inbuilt
Appliances
- Dometic fridge/freezer
- Stainless Steel Large bowl sink
- Dometic brand, light weight, slim, efficient, multi cycle and economic
- Dometic 3 burner stove
- 6 gal electrical microwave with 4 operating features: simple cooking, microwave cooking, auto defrost function and grill/combination cooking
- Clarion CD/FM/iPod/Bluetooth/USB
- Two Pioneer internal roof mounted speakers
- Two external marine grade outdoor speakers
- 24’’ TV with DVD function
- Smoke Alarm & Gas Detector
- Jack Digital HDTV over the Air Antenna with Built-in SureLock
- Fire extinguisher
Plumbing
- Full fiberglass enclosed bathroom with ventilation and bifold door
- Hot/cool water shower
- Thetford/Dometic Toilet
- Pump to 3 stage filter tap
- Water Tanks
- General Water: 1x 50 gal polyurethane water tank with 0.12” bash cover for ultimate protection
- Drinking Water: 1x 16 gal lightweight, durable, polyurethane water tank with alloy bash cover
- Grey water: 66 gal Polyurethane water tank with aluminium 0.12” bash cover
- 2x 20 lbs Gas cylinder Holders
- 2x 5 gal Jerry-can holders
- 6 gal Atwood Gas Hot Water system
- Wash tap located on drawbar
Chassis
- Hot dipped Galvanized chassis with RHS 6” x 2” x 0.15”, made in one continuous piece to rear ensure the draw bar is unbreakable with numerous 0.24” supporting plates for extra strength and durability
- Aluminium RHS frame, aluminium composite material/panel
- Engineered and load tested at 20 ton per each suspension arm with dual shock absorbers per control arm and coil springs
- 2x 16” custom Black Series steel Sunraysia wheels with a satin black powder coated rated at 1,550kg each
- 2x 265 x 75 x R16 Goodride Mud Terrain tires
- 2x 12” electric with mechanical handbrake
- Hitchmaster DO35 V2-1 with car attachment included
- ARK XO Swing Away 10” Jockey Wheel Included
- Two rear rated recovery shackles – rated to 4.75T
Electrical
- 12V/ 120V electrical system with 2000 watt Black Series Inverter with a peak of 4000 watt and Charger with a custom Black Series control panel
- 2x AGM 100Ah Gel batteries
- 2x Roof mounted 150w Solar panels
- LED down lights
- Touch lights in kitchen and bathroom
- Reading lights in bedroom and living room
- LED strip mood lights in living room/ kitchen/ bathroom
- Wide-angle Side & Rear mounted LED lights with additional front and rear bar lights
- Anderson plug
- ALKO breakaway system car attachment provided
- Internal/External 12V/USB plugs
- x7 Internal double pole power points and x1 external weatherproof power points
Exterior
- x5 Eurovision windows with fly screens and privacy shades
- Dometic Roof Hatch with shade
- Custom aerodynamic modern front end of caravan, with Gas compartments ventilated and stored separately with additional storage area / stone deflector with Jerry Cans and fire wood holder at the rear
- Full roof and walls insulation
- Wind out compact awning
- Drop down Thule Sweden Outdoor preparation bench
- 4x Stabilizer legs
-----------------------------------------
MODEL HQ17
Interior
- A unique first-class feature, curtains for privacy, dropdown TVs/DVDs, personal fans, power points/USB sockets and independent mood lightning through both bunks
- Pull up side cover for extra preparation area
- Grey acrylic full height splashback
- Dinette style leather seats
- Adjustable table / lounge bed
- 1x Queen size innerspring mattress, + 1x Lounge bed, + Double Bunk bed foam mattress
- Modern Wooden vinyl throughout
- Modern 5-star timber finish veneer with ample storage space
- Malaysian honeycomb timber for ultra-light weight finished off with a durable gloss timber veneer Soft close drawers
- Gas strut assist cupboards
- Slim twin fan and twin light range hood
- Quality black leather hide with a modern 5-star finish diamond stitching throughout the sofa, storage pockets and bed rest areas
- Tri Lock Security Door with fly screen door inbuilt separately
Appliances
- Thetford/Dometic fridge/freezer (check with retail on availability)
- Dometic 2 in 1 cooker and sink with a glass lid allowing for preparation area
- Dometic brand (model: CALR241), light weight, slim, efficient, multi cycle and economic
- 6 gal Microwave with 4 operating features: simple cooking, microwave cooking, auto defrost function and grill/combination cooking
- Clarion CD/FM/iPod/Bluetooth/USB
- Two Pioneer internal roof mounted speakers
- Two external marine grade outdoor speaker
- Main Living Area: 24’’ TV with CD/DVD entertainment
- Bunk: x2 12’’ TV with CD/DVD entertainment for each bunk
- Smoke Alarm & Gas Detector
- Jack Digital HDTV over the Air Antenna with Built-in SureLock
- Fire Extinguisher
Plumbing
- Full fiberglass shower enclosed with ventilation, Thetford/Dometic toilet and hand basin with stainless finish towel racks accessible via bifold door
- Hot/cool water shower
- Pump to 3 stage filter tap
- Water Tanks
- General Water: 1x 50 gal polyurethane water tank with 0.08” bash cover for ultimate protection
- Drinking Water: 1x 16 gal lightweight, durable, polyurethane water tank with alloy bash cover
- Grey water: 66 gal Polyurethane water tank with aluminium 0.12” bash cover
- 2x 20 lbs Gas cylinder Holders
- 2x 5 gal Jerry-can holders
- 6 gal Atwood Gas Hot Water system
- Wash tap located on drawbar
Chassis
- Hot dipped Galvanized chassis with RHS 6” x 2” x 0.15”, made in one continuous piece to rear ensure the draw bar is unbreakable with numerous 0.24” supporting plates for extra strength and durability
- Additional chassis 4” x 2” x 0.12” for off-road clearance and unbreakable structure
- Aluminium RHS frame, aluminium composite material/panel
- Engineered and load tested at 20 ton per each suspension arm with dual shock absorbers per control arm and coil springs
- x4 16 in. custom Black Series Alloy wheels with a satin black powder coated rated at 2,160 lbs. each
- 4 x 265 x 75 x R16 Goodride Mud Terrain tires
- 4x 12 inch electric with mechanical handbrake park assist
- Hitchmaster DO35 V2-1 with car attachment included
- ARK XO Swing Away 10” Jockey Wheel Included
- Two rear rated recovery shackles – rated to 4.75T
Electrical
- Main queen bed area with a fan and double bunks with independent fans for inner circulation
- 12V/ 120V electrical system with 2000 watt Black Series pure sine wave Inverter with a peak of 4000 watt and Charger with a custom Black Series control panel
- 2x AGM 100Ah GEL batteries
- 2x Roof mounted 150w Solar panels
- LED down lights
- Reading lighting in bedroom, bunk and living room
- LED mood lights in living room and kitchen
- Wide-angle Side & Rear mounted LED lights with additional front and rear bar lights
- 50 AMP Anderson plug
- ALKO breakaway system car attachment provided
- Internal/External 12V/USB plugs
- x7 Internal double pole power points and x1 external weatherproof power points
Exterior
- X5 Eurovision windows with fly screens and privacy shades
- Dometic Roof Hatch with shade
- Custom aerodynamic modern front end of caravan, with Jerry and Gas compartments ventilated and stored separately with additional storage area / stone deflector
- Full roof and walls insulation
- Wind out compact awning
- Drop down Thule Sweden
- Outdoor preparation bench
- 4x Stabilizer legs
-----------------------------------------
MODEL HQ19
Interior
- A separate private toilet and shower with ceramic vanity with a hidden laundry
- Drop down stove cover/Preparation area
- Grey acrylic full height splashback
- Dinette style leather seats
- Adjustable table / lounge bed
- 1x Queen size innerspring mattress + 1x Lounge bed
- Modern Wooden vinyl throughout
- Modern 5-star timber finish veneer with ample storage space
- Malaysian honeycomb timber for ultra-light weight finished off with a durable gloss timber veneer
- Sliding door in ensuite area with ventilation
- Large slimline slide out pantry
- Stainless finish towel racks
- Soft close drawers
- Gas strut assist cupboards
- Slim twin fan and twin light range hood
- Quality black leather hide with a modern 5-star finish diamond stitching throughout the sofa, storage pockets and bed rest areas
- Tri Lock Security Door with a separate fly screen door inbuilt
Appliances
- Thetford/Dometic fridge/freezer (check with retail on availability)
- Stainless Steel Large bowl sink
- Automatic top loader washing machine – 7.7lbs
- Dometic brand, light weight, slim, efficient, multi cycle and economic
- Thetford/Dometic Multi-functional cooker (check with retail on availability)
- 6 gal electrical microwave with 4 operating features: simple cooking, microwave cooking, auto defrost function and grill/combination cooking
- Clarion CD/FM/iPod/Bluetooth/USB
- Two Pioneer internal roof mounted speakers
- Two external marine grade outdoor speakers
- 24’’ TV with DVD function
- Smoke Alarm & Gas Detector
- Jack Digital HDTV over the Air Antenna with Built-in SureLock
- Fire extinguisher
Plumbing
- Full fiberglass enclosed bathroom with ventilation and bifold door
- Hot/cool water shower
- Thetford/Dometic Toilet
- Pump to 3 stage filter tap
- Water Tanks
- General Water: 1x 50 gal polyurethane water tank with 2mm bash cover for ultimate protection
- Drinking Water: 1x 16 gal lightweight, durable, polyurethane water tank with alloy bash cover
- Grey water: 66 gal Polyurethane water tank with aluminium 3mm bash cover
- 2x 20 lbs Gas cylinder Holders
- 2x 5 gal Jerry-can holders
- 6 gal Atwood Gas Hot Water system
- Wash tap located on drawbar
Chassis
- Hot dipped Galvanized chassis with RHS 6” x 2” x 0.15”, made in one continuous piece to rear ensure the draw bar is unbreakable with numerous 6mm supporting plates for extra strength and durability
- Additional chassis 4” x 2” x 0.12” for off-road clearance and unbreakable structure
- Aluminium RHS frame, aluminium composite material/panel
- Engineered and load tested at 20 ton per suspension arm with dual shock absorbers per control arm and coil springs
- X4 16 in. custom Black Series Alloy wheels with a satin black powder coated rated at 1,000kg each
- 4 x 265 x 75 x R16 Goodride Mud Terrain tires
- 4x 12 inch electric with mechanical handbrake
- Hitchmaster DO35 V2-1 with car attachment included
- ARK XO Swing Away 10” Jockey Wheel Included
- Two rear rated recovery shackles – rated to 4.75T
Electrical
- All connected by a certified electrician to comply with Australian Standards (Compliance Certificate included)
- 12V/ 120V electrical system with 2000 watt Black Series pure sine wave
- Inverter with a peak of 4000 watt and Charger with a custom Black Series control panel
- 2x AGM 100Ah GEL batteries
- 2x Roof mounted 150w Solar panels
- LED down lights
- Touch lights in kitchen and bathroom
- Reading lights in bedroom and living room
- LED strip mood lights in living room/ kitchen/ bathroom
- Wide-angle Side & Rear mounted LED lights with additional front and rear bar lights
- 50 AMP Anderson plug
- ALKO breakaway system car attachment provided
- Internal/External 12V/USB plugs
- X7 Internal double pole power points and x1 external weatherproof power points
Exterior
- X5 Eurovision windows with fly screens and privacy shades
- Dometic Roof Hatch with shade
- A custom aerodynamic modern front end of caravan, with Jerry and Gas compartments ventilated and stored separately with additional storage area / stone deflector
- Full roof and walls insulation
- Wind out compact awning
- Drop down Thule Sweden
- Outdoor preparation bench
- 4x Stabilizer legs
-----------------------------------------
CLASSIC 12
Interior
- Full fiberglass shower enclosed with ventilation, toilet and hand basin
- Dinette style leather seats
- Removable / Adjustable table
- 1x Double Bed with additional removable bunk bed (Gas Strut assisted) mattress included
- Modern Wooden vinyl throughout
- Modern 5-star timber finish veneer with:
- Malaysian honeycomb timber for ultra-light weight finished off with a durable gloss timber veneer
- Security Door with a separate fly screen door inbuilt
- Tri Lock Security Door with a separate fly screen door inbuilt
Appliances
- Dometic fridge/freezer
- Dometic 3 burner stove on external kitchen
- Kenwood CD/FM/iPod/Bluetooth/USB
- Two internal mounted speakers
- 24’’ TV with DVD function
- Smoke Alarm & Gas Detector
- Fire extinguisher
Plumbing
- Full fiberglass enclosed bathroom with ventilation
- Hot/cool water shower
- Toilet included standard
- Water Tanks
- General Water: General Water: 2x 100L Polyurethane water tanks with 2mm bash cover for ultimate protection. (Total 200L)
- 2x 9kg Gas cylinder Holders
- 2x 20L Jerry-can holders
- 23L Atwood Gas Hot Water system
Chassis
- Hot dipped Galvanized drawbar and chassis made from RHS 150mm x 50mm x 4mm for extra strength and durability
- Aluminium RHS frame, aluminium composite material/panel
- Independent suspension arms with dual shock absorbers and coil springs
- x3 16inch Steel Sunraysia wheels with a satin black powder coated finish, rated at 1,550kg each
- 3x 265 x 75 x R16 Good ride Mud Terrain tires
- 2x 12inch electric with mechanical handbrake
- AL-KO Off-Road 50mm ball coupling
- Swing Away 10” Jockey Wheel Included
- Two rear rated recovery shackles – rated to 4.75T
Electrical
- 12V/ 240V electrical system with Black Series pure sine wave Invertor and Charger with a custom GIC CLASSIC-12 control panel
- 1x AGM 100Ah GEL batteries
- Roof mounted lights
- Reading lights in bedroom
- Side mounted lights
- Anderson plug
- Internal/External 12V/USB plugs
- Internal double pole power points
Exterior
- Easy 2 stage pop-up (No external latches) with fold out bed extension
- Slide out external stainless kitchen with fold out and slide out benches
- X3 Eurovision windows with fly screens and privacy shades
- Full roof and walls insulation
- Wind out compact Dometic awning
- Wind down spare wheel carrier with spindle
- 4x Stabilizer legs
- External Shower Tent
-----------------------------------------
MODEL HQ21
Interior
- Separate private toilet with ceramic vanity.
- Separate private shower.
- Drop down stove cover/Preparation area.
- Grey acrylic full height splashback.
- Large U Shape Dinette Style Lounge area with comfortable durable seating.
- Adjustable table / lounge bed.
- 1x Queen size inner spring mattress + 1x Lounge bed.
- Modern Wooden vinyl flooring throughout.
- Modern 5-star timber finish veneer with ample storage. Ultra-light weight Malaysian honeycomb timber, finished off with a durable gloss timber veneer. Sliding door in separate sleeping area with ventilation.
- Large slim line slide out pantry.
- Stainless finish towel racks
- Soft close drawers
- Gas strut assist cupboards
Plumbing
- Internal shower in a full fiberglass enclosed bathroom with ventilation and Slim door.
- External hot/cool water shower
- Thetford/Dometic Toilet
- Three stage filter for drinking water.
- Water Tanks:
- 1x 50 Gal lightweight, durable polyurethane water tank with aluminium .12" bash cover.
- 1x 16 Gal lightweight, durable, polyurethane water tank with aluminium .12" bash cover.
- 26 Gal Polyurethane Grey and Black water tank with aluminium .12" bash cover.
- 2x 20 lb Gas cylinder Holders
- 2x 5 Gal Jerry-can holders
- 6 Gal Hot Water system
Chassis
- Hot dipped Galvanized chassis with RHS 6" x 2" x .15", made in one continuous piece to the rear, toensure the draw bar is unbreakable with numerous .23" supporting plates for extra strength and durability.
- Additional chassis 4" x 2" x .12" for off-road clearance and unbreakable structure.
- Aluminium RHS frame, aluminium composite material/panel.
- Engineered and load tested independant suspension at 20 ton per suspension arm with dual shock absorbers per control arm and coil springs.
- Four 16" custom Black Series Alloy wheels with a satin black powder coating rated at 2,205 lbs each.
- Four 265 x 75 x R16 mud terrain tires.
- Four 12" electric drums with mechanical handbrake.
- Black Series ADR Approved Off Road Poly-Block Hitch with car attachment included.
- ARK 750 XO Swing Away 10” Jockey Wheel Included.
- Two rear rated recovery shackles - rated 10,471 lbs
Electrical
- 12V/ 110V electrical system with 2000watt Black Series pure sine wave Invertor with a peak of 2000watt and Charger with a custom Black Series control panel.
- AGM 100Ah GEL batteries.
- Two Roof mounted 150w Solar panels.
- INTERNAL LIGHTING:
- LED down lights
- Touch lights in kitchen
- Reading lights in bedroom and living room
- LED strip mood lights in living room / kitchen / bathroom
- Wide-angle Side external LED lights with additional front and rear bar lights.
- 50 AMP Anderson plug
- Breakaway system car attachment provided
- Internal/External 12V/USB plugs
- Six Internal double pole power points and x1 external weather proof power points.
Exterior
- Seven Eurovision windows with fly screens and privacy shades
- Two Roof Hatch with shade and LED lights
- A custom aerodynamic modern front end of caravan, with Jerry and Gas compartments ventilated and stored separately with additional storage area / stone deflector.
- Full roof and walls insulation, R16 factor
- Wind out compact awning
- Drop down outdoor step
- Outdoor preparation bench
- Four Stabilizer legs
--------------------------------------------
TOY HAULER TRAVEL TRAILERS
MODEL HQ22T
Interior
- Separate fly screen door inbuilt. x1 fold down door (rear side of door)
- Rugged folding step
- External cold & hot shower
- Slide out stainless steel kitchen
- Wide-angle lamp on the front/rear/left/right side
- One solar sensor wall light
- Two spotlights.
- Seven pin plug
- Brake safe system
- One Smoke alarm & one Gas detector
Plumbing
- Gas Hot Water System, 6 gallons
- Open rear door to be flat and connect with the side wall of tent
- One Fire Extinguisher
- Water Tank: 50 gal polyurethane fresh water tank
- 16 gal polyurethane drinking water tank
- 26 gal polyurethane grey water tank
- 26 gal polyurethane black water tank
- Water Tank Guard Plate: Black coating aluminum diamond plate
- Water Inlet: 3 x FIAMMA
- Water Purifier: x 1 Triple Filter
- Water Pump: x 2 Water Tank + Drinking Water
- Gas System: LPG
- Gas Bottle Holder: 2 x 20 lbs
- Jerry Can Holder: 2 x 5 gal
- Bumper: Red coating bumper
- Stabilizer Legs: 4x adjustable stabilizer legs
- Spare Wheel Holder: Single spare wheel holder
- Shackle: 2 x 10,640 lbs
- Fold Table: x1
- Roof Hatch: 2x big skylight, 1x bathroom vent
- Exterior Water Tap: x1
Chassis
- Exterior Panel: Aluminum composite panel+aluminum Diamond plate
- Chassis Construction: Double layer chassis
- Jockey Wheel: 1x Swing up heavy duty 10 inch solid Jockey wheel
- Independent suspension with 4 coil springs, and dual shock absorber
- 5 x 235*75*R15 All - terrain tires (including spare tire)
- Coupling: 12000LB - capacity - articulating
- Safety Chains: BLACK SERIES with x 2 4,480 lb D shackle
- Brake system: 12 inch electric brake+handbrake
- Dry Weight: 6,504 lbs Tow Ball Weight: 728 lbs
- Two Pioneer internal roof mounted speakers.
- Two external wall mounted outdoor speakers
- Lighting : Touch reading lights in bedroom LED atmosphere lights on roof
- Sleeping Configuration: Main queen bed
- 4x single bunk beds folding style (can be changed to sofa)
- Combination bathroom
- Ceramic washbasin
- Water tap with sprinkler function
- Dometic direct drainage closestool - need flush
- Shelf and Mirror
Electrical
- 12V/ 110V electrical system
- 2000 watt Black Series pure sine wave Invertor with a peak of 4000 watts
- Charger with a custom Black Series control panel.
- AGM 100Ah GEL batteries.
- Two Roof mounted 150w Solar panels.
- Cabin LED down lights
- Reading lights
- LED strip mood lights
- Wide-angle exterior Side LED lights with additional front and rear bar lights
- 50 AMP Anderson plug/ 30 amp shoreline
- ALKO breakaway system car attachment provided
- Internal/External 12V/USB plugs
- POWER POINTS: x6 Internal double pole power points and x1 external weather
- proof power points.
Exterior
- Seven Eurovision windows with fly screens and privacy shades
- Two Roof Hatch with shade and LED lights
- A custom aerodynamic modern front end of caravan, with Jerry and Gas compartments ventilated and stored separately with additional storage area / stone deflector.
- Full roof and walls insulation, rated for R16 factor
- Wind out compact awning
- Drop down outdoor step
- Full outdoor kitchen with prep table
- Four Stabilizer legs
--------------------------------------------
POP-UP CAMPERS
SERGEANT
Tent Specifications
- Quality close weaved canvas 18oz (1.12lbs) roof & 16 oz (1 lbs) walls.
- Self-supporting modern design freestanding without guide ropes. (Depending on weather conditions.)
- New design upgraded fold out frame enables quicker setup of tent.
- Quality PVC floor with 4” high PVC floor to prevent water seepage.
- Heavy duty SBS zips throughout.
- Heavy Duty 0.12lbs/sq ft PVC travel cover with 8 x large tie down points, the cover has both velcro and zipper for maximum water and dust prevention
- Annex walls are removable in 3 parts with velcro for personal configuration.
- Clear PVC skylight for bedroom with internal canvas cover.
- Ventilation vent in bedroom.
- Both mosquito and midge proof mesh used on all doors and windows.
- Large windows throughout tent for increased ventilation.
- Access to trailer via 2 trap doors. (Main bedding area)
- All stress points are fully reinforced.
- All stitching is seam taped.
- Access to trailer via velcro skirting when erected.
- Internal storage pockets included.
- Bed board constructed from 20 mm marine plywood.
- Annex walls
- Annex floor
- Tailgate cover
- Ropes
- Pegs
- Tent poles
- Ladder
- Extra spreader poles
- Measurements:
- Fixed Section: 5.35m x 2.40m
- Annexe Section: 5.35m x 2.40m
- Highest Point: 2.60m
- Lowest Point: 1.80m
- Annex Roof
Trailer Specifications
- Trailer Size: 7x4ft (& internal depth 20”)
- Drawbar: Electrophoresis / Galvanised 4”x2”x0.12” extended length 6FT. (Draw bar extended to front spring hanger for extra stability, cornering, reversing and strength.)
- Chassis: Duragal tube reinforced chassis (2”x 2”x 0.12” RHS.) All stress points on the chassis and drawbar have been reinforced.
- Brakes: Heavy Duty 10-inch electric brakes with handbrake.
- Wheels & Tyres: Brand new tyres with 15” “Sunraysia” wheels. (6 stud Landcruiser Pattern)
- Construction: Zincanneal Checker plate body, welded and sealed.
- Finish: Black Hammertone powder coating. (Durable and scratch resistant.)
- Jockey Wheel: 10” swing-up & lockable
- Jerry Can Holders: 2 x Lockable military style 5 gal Jerry Can Holder.
- Gas bottle holders: 2 x Lockable 8.8 lbs gas bottle holder.
- Tailgate: Swing gate door with 2 x T-Locks & pinch rubber seal with latch to secure kitchen/tailgate.
- Lights: Large LED fully submersible tail lights, number plate light and clearance lights.
- Stabilizer Legs: 2 x Heavy Duty lockable & adjustable. (wind down spindle supplied.)
- Light Connection Plug: 7 pin flat plug
- Mount on rear tailgate for spare.
- Guards & Gussets: Double folded for maximum strength.
- Quality Marine Carpet throughout the camper.
- Safety Chains: ADR Approved Dual Safety Chains.
- Coupling handle
- Lighting: Internal LED light with switch to light up box section
--------------------------------------------------
ALPHA
Tent Specifications
- Quality close weaved canvas 18oz (510g) roof & 16oz (450g) walls.
- Self-supporting modern design freestanding without guide ropes. (Depending on weather conditions.)
- New design upgraded fold out frame enables quicker setup of tent.
- Quality PVC floor with 100mm high PVC floor to prevent water seepage.
- Heavy duty SBS zips throughout.
- Heavy Duty 600g/sqm PVC travel cover with 8 x large tie down points, the cover has both velcro and zipper for maximum water and dust prevention.
- Annex walls are removable in 3 parts with velcro for personal configuration.
- Clear PVC skylight for bedroom with internal canvas cover.
- Ventilation vent in bedroom.
- Both mosquito and midge proof mesh used on all doors and windows.
- Large windows throughout tent for increased ventilation.
- Access to trailer via 2 trap doors. (Main bedding area)
- All stress points are fully reinforced.
- All stitching is seam taped.
- Access to trailer via velcro skirting when erected.
- Internal storage pockets included.
- Bed board constructed from 20 mm marine plywood.
- Standard Inclusions:
- Annex roof
- Annex walls
- Annex floor
- Tailgate cover
- Ropes
- Pegs
- Tent poles
- Ladder
- Extra spreader poles
- Measurements:
- Fixed Section: 5.35m x 2.40m
- Annexe Section: 5.35m x 2.40m
- Highest Point: 2.60m
- Lowest Point: 1.80m
Trailer Specifications
- Drawbar: Electrophoresis / Galvanised 100x50x3mm extended length 2m. (Draw bar extended to front spring hanger for extra stability, cornering, reversing and strength.)
- Chassis: Duragal tube reinforced chassis 50x50x3mm RHS. All stress points on the chassis and drawbar have been reinforced.
- Brakes: Heavy Duty 10-inch electric brakes with handbrake.
- Brakes: Heavy Duty 10-inch electric brakes with handbrake.
- Wheels & Tyres: Brand new tyres with 15” “Sunraysia” wheels. (6 stud Landcruiser Pattern)
- Construction: Zincanneal Full enclosed, fully welded, seal, steel construction for maximum strength.
- Finish: Black Hammertone powder coating. (Durable and scratch resistant.)
- Jockey Wheel: 10” swing-up & lockable
- Jerry Can Holders: 2 x 20L jerry can holders
- Gas bottle holders: 2 x 9KG gas bottle holders
- Tailgate: Swing gate door with 2 x T-Locks & pinch rubber sealed with latch to secure kitchen/tailgate.
- Lights: Large LED fully submersible tail lights & number plate lights and clearance lights.
- Stabilizer Legs: 2 x Heavy Duty lockable & adjustable. (Wind down spindle supplied.)
- Light Connection Plug: 7 pin flat plug
- Mount on rear tailgate for spare.
- Fully Enclosed Side Boxes: 2 x draws, 3 storage areas and 1 x slide out passenger tray for maximum storage.
- Doors: All Doors recessed and sealed with automotive pinch rubber.
- Quality Marine Carpet throughout the camper.
- Safety Chains: ADR Approved Dual Safety Chains.
- Coupling handle
- Lighting: Internal LED light with switch to light up box section
------------------------------------------------------
DOMINATOR
Tent Specifications
- A Collective 194 sq ft of living space.
- Comfortable 60 second setup of hardstand section.
- Colour: Two Tone Grey
- Hardstand Section: 13.7 x 6ft
- Quality Close Weaved 16oz(1lb) Canvas.
- Double stitching throughout all stress points reinforced.
- Poles: Durable galvanized poles with corner reinforcing.
- Windows: Midge and mosquito proof mesh
- Mattress: Quality Mattress Included.
- Inclusive of tropical cover, annex roof, walls, floor, poles, ladders and pegs
Trailer Specifications
- Suspension: Adjustable independent suspension with dual shock absorbers per independent arm and coil springs.
- Drawbar & Chassis: Electrophoresis / Galvanised chassis with RHS 4”x2”x0.15” made in one continuous piece to rear ensure the draw bar is unbreakable!
- Internal Setup: Table with surrounding couches, once folded away can be turned in second bedroom.
- Brakes: 12” Heavy Duty electric brakes assist setup with mechanical handbrake.
- Construction: Zincanneal full enclosed, welded, bonded and sealed for maximum strength.
- Finish: Enamel baked paint finish.
- Internal Finish: Modern wood finish with marine carpet thought-out.
- Jockey Wheel: 10” swing-up & lockable.
- Jerry Can Holders: 2 x 5 gal Jerry can holders
- Gas bottle holders: 2 x 20 lbs gas bottle holders
- Stainless Kitchen: With a large sink, light, electric pump and tap.
- Lights: LED Fully submersible tail lights, number plate and clearance lights.
- Stabilizer Legs: x4 Heavy Duty lockable & adjustable. (Wind down spindle supplied.)
- Electrical System: Deep Cycle AGM battery 100AH with 12V sockets with USB and equipped with a 50AMP Anderson plug.
- Undercarriage: Deadener coating used for maximum protection.
- Huge Tool Box with large drawers for generator, esky or fridge also includes a built-in pantry, ventilation fan and LED light.
- Setup is made easy with two winches and a lightweight aluminium lid.
- Light Connection Plug: 7 pin flat plugs ADR dual safety chains.
- Two rear rated recovery shackles fitted standard.
- Coupling handle
- Gas strut assistance for quick and easy erection of tent.
- Dual spare wheel mounts.
----------------------------------------------
PATRON
Tent Specifications
- A Collective 18sqm of living space.
- Colour: Two Tone Grey
- Hardstand Section: 16ft x 6ft
- Annex Section: 15.4ft x 8.2ft
- Quality Close Weaved 16oz(450g) Canvas.
- Double stitching throughout all stress points reinforced.
- Poles: Durable galvanized poles with corner reinforcing.
- Windows: Midge and mosquito proof mesh with zip-able screens.
- Mattress: Quality Mattress Included.
Trailer Specifications
- Suspension: adjustable independent suspension with dual shock absorbers per independent arm and coil springs.
- Drawbar & Chassis: Electrophoresis / Galvanised chassis with RHS 4”x2”x0.15” made in one continuous piece to rear ensure the draw bar is unbreakable!
- Internal Setup: Table with surrounding couches, with front and rear bedding areas.
- Our unique design slide section turns into a second bedroom while you keep the lounge area.
- Brakes: 12” Heavy Duty electric brakes assist setup with mechanical handbrake.
- Construction: Zincanneal full enclosed, fully welded, bonded and sealed for maximum strength and protection.
- Finish: Enamel baked paint finish.
- Internal Finish: Modern wood finish with marine carpet.
- Jockey Wheel: 10” swing-up & lockable
- Jerry Can Holders: 2 x 20L Jerry can holders
- Gas bottle holders: 2 x 9KG gas bottle holders
- Stainless Kitchen: With a large sink, light, electric pump and tap.
- Lights: LED Fully submersible tail lights, number plate and clearance lights.
- Stabilizer Legs: x4 Heavy Duty lockable & adjustable. (Wind down spindle supplied.)
- Electrical System: Deep Cycle AGM GEL battery 100AH with 12V sockets with USB and equipped with a 50AMP Anderson plug.
- Undercarriage: Deadener coating used for maximum protection.
- Huge Tool Box with large drawers for generator, esky or fridge also includes a built-in pantry, ventilation fan and sensor LED light.
- Setup is made easy with two winches and a lightweight aluminium lid.
- Light Connection Plug: 7 pin flat plugs ADR dual safety chains.
- Two rear rated recovery shackles fitted standard.
- Coupling handle
- Dual spare wheel mounts. (Gas strut assisted.)
- Coupling handle
- Gas strut assistance for erection of tent
- Dual spare wheel mounts
-----------------------------------------------
CLASSIC DOUBLE
Tent Specifications
- A Collective 89 Sq. ft of living space
- Colour: Two Tone Grey
- Hardstand Section: 20 ft x 7 ft
- Annex Section: 20 ftx 8 ft
- Quality Close Weaved 16oz (450g) Canvas
- Double stitching throughout all stress points reinforced
- Poles: Durable galvanized poles with corner reinforcing
- Windows: and mosquito proof mesh with zip-able screens
- Mattress: Two Quality Mattresses Included
Trailer Specifications
- Suspension: adjustable independent suspension with dual shock absorbers per independent arm and coil springs.
- Drawbar & Chassis: Electrophoresis / Galvanized RHS chassis 3 x 2 x 0.12 inch and Draw bar RHS 4 x 2 x 0.16 inch with additional 0.2 inch plates to strengthen further for all your touring and off-road needs!
- Internal Setup: Table with surrounding couches, with front and rear bedding areas. Our unique Double fold design turns into a third bedroom while you keep the lounge area.
- Brakes: 12” Heavy Duty electric brakes assist setup with mechanical handbrake
- Construction: Zincanneal full enclosed, fully welded, bonded and sealed for maximum strength and protection
- Finish: Enamel baked paint finish
- Internal Finish: Modern wood finish with marine carpet
- Jockey Wheel: 10” swing-up & lockable
- Jerry Can Holders: 2 x 5 Gal Jerry can holders
- Propane bottle holders: 2 propane bottle holders
- Stainless Kitchen: With a large sink, light, electric pump and tap
- Water Tank: Twin 24 Gal Polyurethane tanks with Aluminium bash cover, total of 48 Gal.
- Lights: LED Fully submersible tail lights, number plate, clearance lights and internal mood lighting
- Stabilizer Legs: Four Heavy Duty lockable & adjustable. (Wind down spindle supplied)
- Electrical System: Deep Cycle AGM GEL battery 100AH with 12V sockets with USB and equipped with a 50AMP Anderson plug
- Undercarriage: Deadener coating used for maximum protection
- Huge Tool Box with large drawers for generator, esky or fridge with built-in ventilation fan and sensor LED light
- Setup is made easy with two lightweight aluminium lids
- Light Connection Plug: 7 pin flat plugs ADR dual safety chains
- Dual spare wheel mounts (Gas strut assisted)
- Breakaway system car attachment included
- Hitch: Black Series Poly Block with car attachment included
- Entertainment: Radio/CD/USB media player with two internal speakers
Please see us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Save your favorite RVs as you browse. Begin with this one!
-
Excellent Customer Service
The whole thing about KARV was an awesome experience! From the beginning with just looking to the final purchase was an excellent experience. Brandon, Robert and John were by far the very best guys to deal with. I can’t ever thank them enough for everything they did to help us purchase our motorhome!!!!! -
Excellent Customer Service
KARV, was professional, and very informative. I am 21 and married with high standards and goals for this life, and KARV assisted my husband and I in making it happen with the purchase of a beautiful and newer trailer, that I can enjoy with my family. They were kind, and very attentive, as well as efficient! -
Excellent Customer Service
Outstanding service and great experience both buying and selling.
Loading
KA RV strives to ensure all pricing, images and information contained in this website is accurate. Despite our efforts, occasionally errors resulting from typos, inaccurate detail information or technical mistakes may occur. We are not responsible for any such errors and reserve the right to correct them at any time. Stock photos may not represent actual unit in stock. See dealer for details.
KA RV is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us @442-788-1123 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.
Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.
